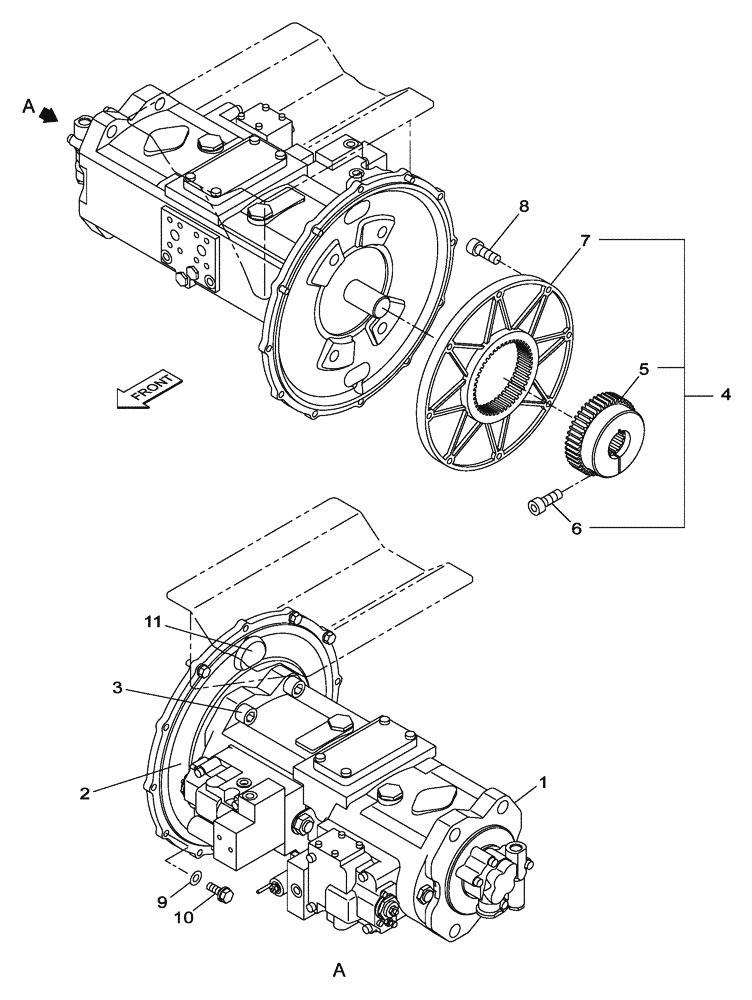

| 1. |
KBJ11010 |
[1] |
HYDRAULIC PUMP |
|
| |
|
|
|
See Figure(s) 08-100-00 01 - 08-104-00 01 |
| 1. |
KBJ14600 |
[1] |
HYDRAULIC PUMP |
|
| |
|
|
|
See Figure(s) 08-100-00 02, 08-101-0 02, 08-103-00 01, 08-104-00 02 |
| 2. |
KSJ2852 |
[1] |
FLANGE |
|
| 3. |
862-20055 |
[4] |
HEX SOC SCREW,M20 x 55mm, Cl 12.9 |
|
| 4. |
KSJ2874 |
[1] |
COUPLING FLANGE |
|
| |
|
|
|
Include(s) 5 - 7 |
| 5. |
KSJ2875 |
[1] |
HUB |
|
| 6. |
108R016Y045R |
[1] |
BOLT |
M16 x 45 |
| 7. |
KSJ2666 |
[4] |
COVER |
|
| 8. |
862-10035 |
[8] |
HEX SOC SCREW,M10 x 35mm, Cl 12.9 |
|
| 9. |
827-10040 |
[9] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd |
|
| 10. |
150409A1 |
[9] |
WASHER |
|
| 11. |
KHJ2656 |
[2] |
GROMMET |
|
